Overhead Crane Warning Light 140W Manufacturer, Overhead Crane Warning Light 140W Price

Overhead Crane Warning Light 140W Price And Quantity

Minimum Order Quantity 1 Unit

Price 33000.0 INR/Unit

Overhead Crane Warning Light 140W Product Specifications

Voltage 140 Watt (w)

Power Supply 140w

Warranty 1 Year Warranty

Alarm Light Color Red/Blue

Product Description

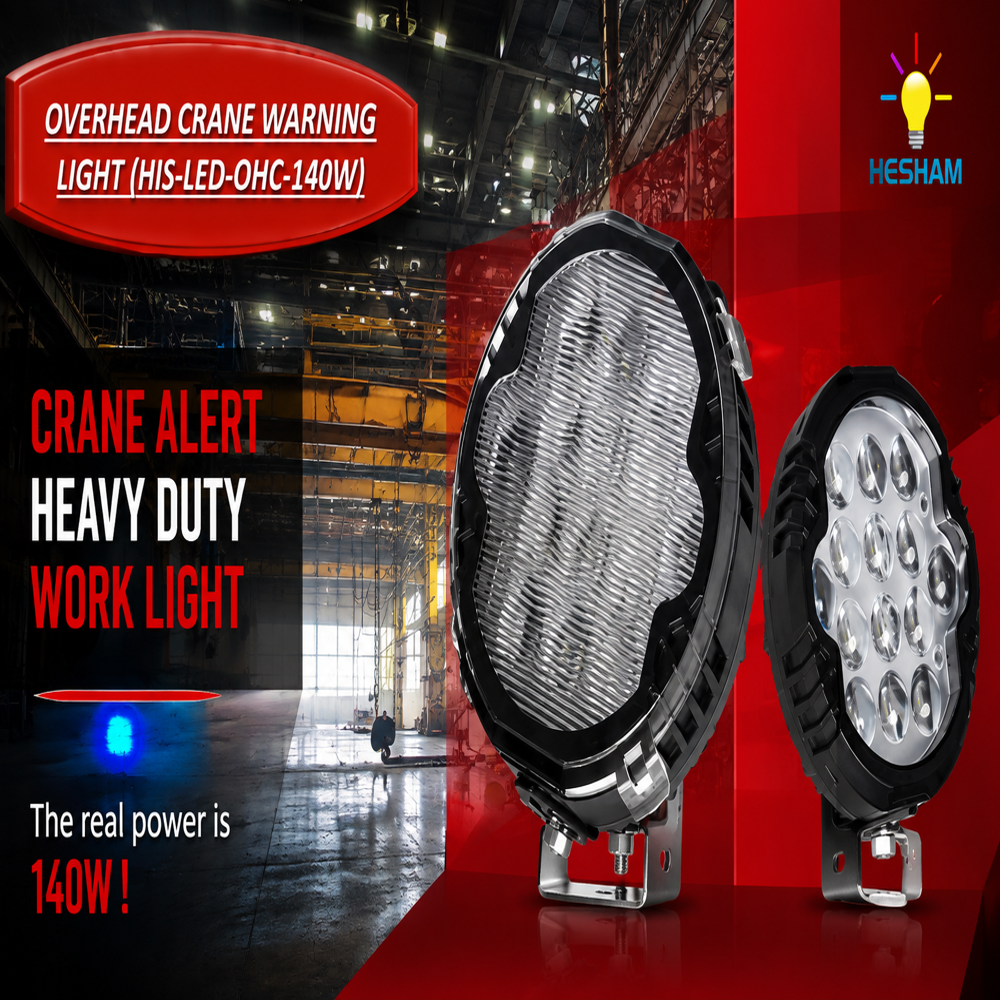

The HIS-LED-OHC-140W is a heavy-duty LED safety warning light designed for overhead crane applications. It provides a highly visible spot (pencil) beam or line beam on the floor to help personnel identify the position and movement zone of the crane, moving load, and hook. This visual warning helps improve pedestrian awareness in industrial crane operating areas.

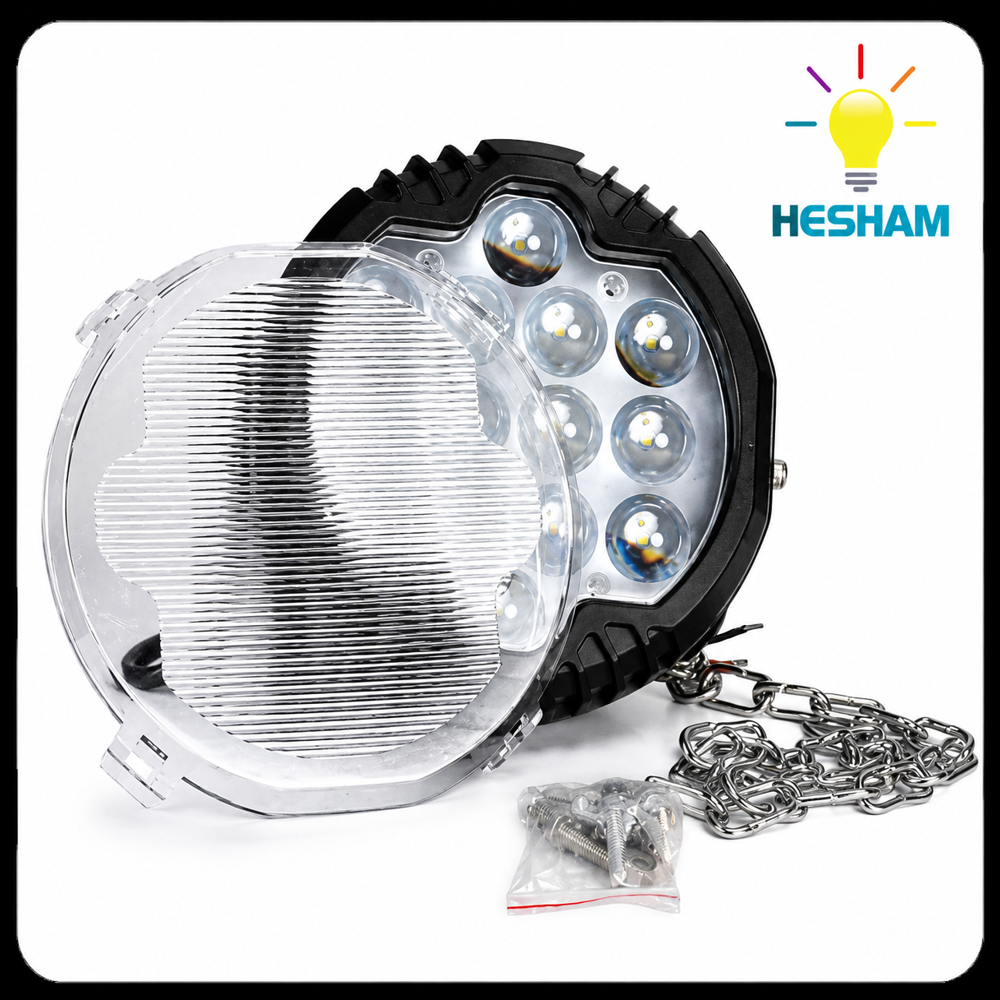

The 140W light supports dual beam patterns. The document describes spot operation without the external lens and line-beam operation using the external lens. It also describes using four lights to create a quadrilateral warning configuration around the crane/load operating are

Technical Specifications

Parameter	Specification
Model	HIS-LED-OHC-140W
Power	140 W
Operating Voltage	932 V DC
Luminous Output	14,000 lm
LED Configuration	14 pcs 10 W CREE LED
Size	200 194 77 mm (7")
Beam Pattern	Spot / Line
LED Color	Red / Blue
Working Life	50,000 hours
Operating Temperature	40C to +85C

These specifications are stated on page 4 of the product document.

Beam Coverage

For the spot beam, the document gives approximate projected diameters of 0.65 m at 5 m, 1.2 m at 10 m, 2.1 m at 15 m, and 2.9 m at 20 m installation height.

For the line beam, the stated floor coverage is 4.2 0.65 m at 5 m, 9.6 1.2 m at 10 m, and 15 1.5 m at 15 m.

Key Features

Heavy-duty overhead crane safety warning system
140 W high-power LED output
14,000 lm rated luminous output
Wide-range 932 V DC operation
Selectable spot/pencil beam or line beam
Red or blue warning-light options
Up to 50,000 hours stated working life
Wide operating temperature range of 40C to +85C
Four-light configurations can define a quadrilateral crane safety/warning zone
Optional AC/DC power supplies are specified for single-light and four-light installations.
