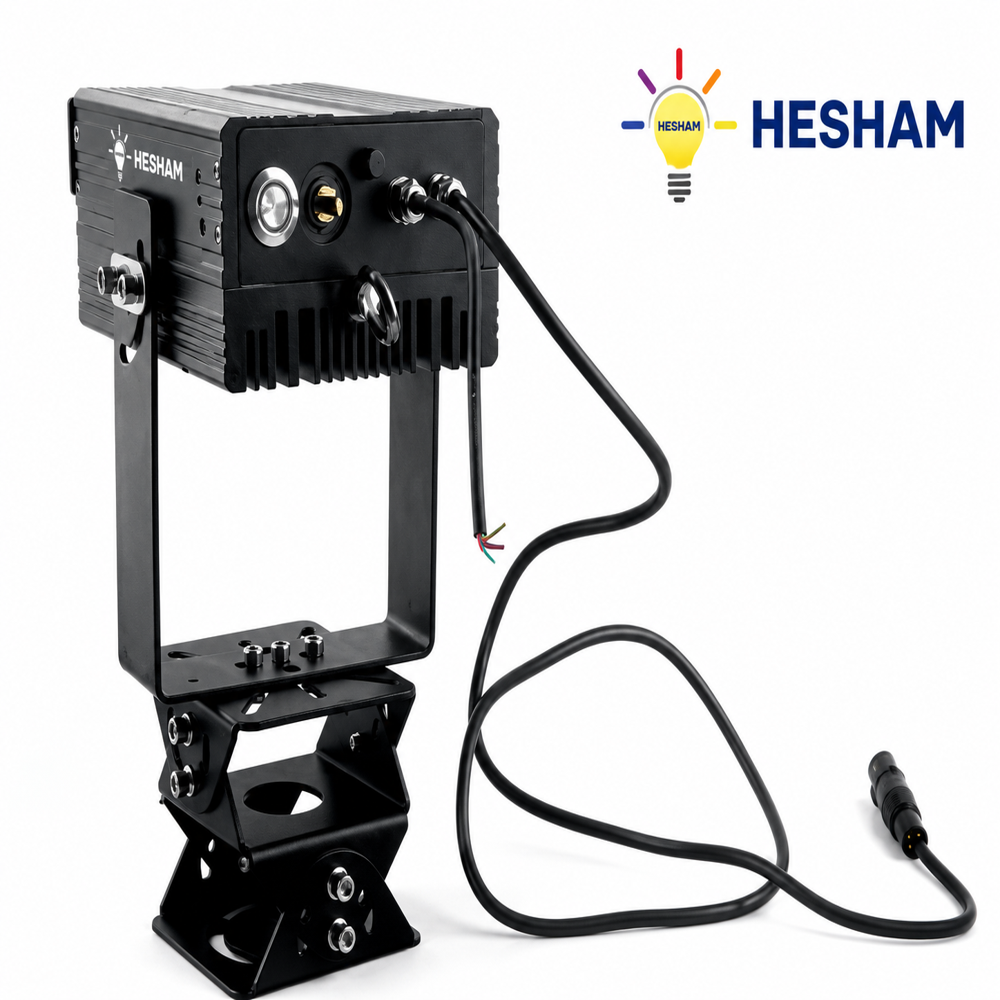

INDUSTRIAL LASER GREEN & RED SAFETY PATHWAY LINE(HIS-PWL-001)
75000.0 INR/Piece
Product Details:
- Product Type Other
- Function Safety Pathway Line Projection
- Input Voltage 85-305VAC Volt (V)
- Light Source Laser (Green/Red)
- Voltage 85-305VAC Volt (v)
- Base Type U-shaped lifting bracket (with or without additional universal bracket)
- Warranty 1YR WARRANTY
- Click to view more
X
INDUSTRIAL LASER GREEN & RED SAFETY PATHWAY LINE(HIS-PWL-001) Price And Quantity
- 1 Piece
- 75000.0 INR/Piece
INDUSTRIAL LASER GREEN & RED SAFETY PATHWAY LINE(HIS-PWL-001) Product Specifications
- 1YR WARRANTY
- Laser (Green/Red)
- 5 KG (with bracket) Kilograms (kg)
- Safety Pathway Line Projection
- Other
- U-shaped lifting bracket (with or without additional universal bracket)
- 85-305VAC Volt (v)
- 85-305VAC Volt (V)
- 205*139.5*84mm (without bracket) Meter (m)
- -20~65C
- Yes
- Green / Red
- Yes
- U-shaped lifting bracket or additional universal bracket/lifting ring
- -40~85C
- 0~4 mW
- Approximately 3.2 - 3.3m
- IEC 3R
- 520nm (Green) / 638nm (Red)
- 90
INDUSTRIAL LASER GREEN & RED SAFETY PATHWAY LINE(HIS-PWL-001) Trade Information
- 10 Days

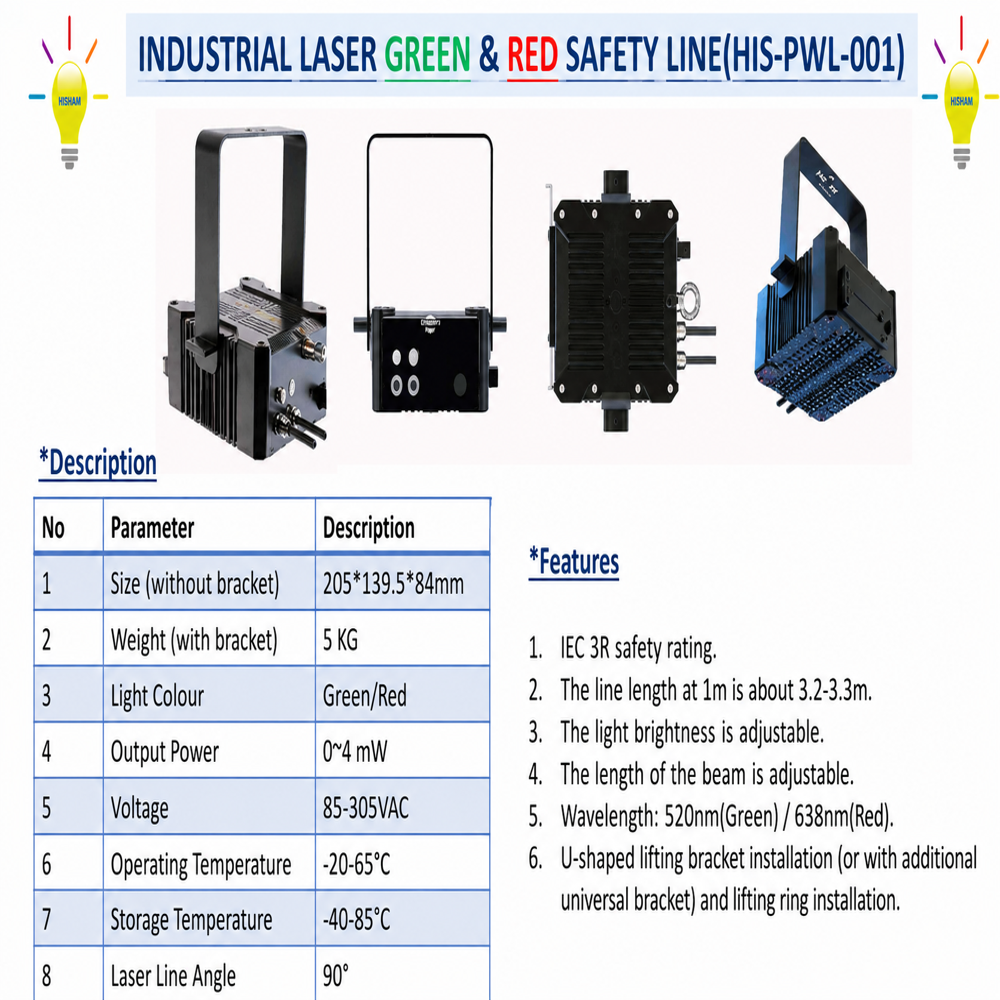

Product Description
No Parameter Description
1 Size (without bracket) 205*139.5*84mm
2 Weight (with bracket) 5 KG
3 Light Colour Green/Red
4 Output Power 0-4 mW
5 Voltage 85-305VAC
6 Operating Temperature -20-65C
7 Storage Temperature -40-85C
8 Laser Line Angle 90
*Description
*Features
1. IEC 3R safety rating.
2. The line length at 1m is about 3.2-3.3m.
3. The light brightness is adjustable.
4. The length of the beam is adjustable.
5. Wavelength: 520nm(Green) / 638nm(Red).
6. U-shaped lifting bracket installation (or with additional
universal bracket) and lifting ring installation.
Power it constant :
1. Plug in the 3 - pin plug
2. Turn on the switch
3. Connecting the red and black wires together
Flash:
1. Plug in the 3 - pin plug
2. Turn on the switch
3. Connecting the red and black wires together
4. Connecting the yellow and white wires together
Hook in a external sensor:
1. Plug in the 3 - pin plug
2. Turn on the switch
3. Connecting the external sensor with the red and
black wires
Adjustable, High-Visibility Laser Lines
Benefit from clear pathway demarcation with adjustable green or red laser lines. The ability to modify brightness and line length ensures optimal visibility for varying operational needs, boosting personnel safety and workflow organization.
Durable and Versatile Design
Built for industrial use, the HIS-PWL-001 endures operating temperatures from -20C to 65C and storage from -40C to 85C. Its U-shaped lifting bracket, and optional universal bracket, make installation adaptable for diverse settings-enhancing compatibility on shop floors, warehouses, or loading docks.
Easy Integration and Safety Assurance
With an input voltage range of 85-305VAC and compliance with IEC 3R safety standards, this safety pathway laser integrates seamlessly into facilities. The 1-year warranty and robust build ensure long-term reliability and peace of mind for industrial operations.
FAQ's of INDUSTRIAL LASER GREEN & RED SAFETY PATHWAY LINE(HIS-PWL-001):
Q: How is the INDUSTRIAL LASER GREEN & RED SAFETY PATHWAY LINE typically installed?
A: Installation is flexible, using the included U-shaped lifting bracket. Optionally, a universal bracket or lifting ring can be used depending on your mounting requirements, allowing for secure attachment to ceilings, walls, or other industrial structures.Q: What are the main benefits of using this laser pathway projector in my facility?
A: By projecting a vivid green or red laser line onto work areas, this device sharply outlines safe pathways or hazardous zones. This visual guidance can significantly reduce accidents and improve workflow safety, especially in busy environments.Q: Where can the HIS-PWL-001 safely be operated?
A: The laser pathway line can be operated indoors or semi-enclosed industrial environments where temperatures range from -20C to 65C. It is suitable for factories, warehouses, and distribution centers that require clear, visible safety demarcation.Q: What process is involved in adjusting the laser line's brightness and length?
A: Both brightness and beam length are adjustable on the device itself-users can fine-tune these settings to suit different ambient light levels or specific safety needs, ensuring the line remains clearly visible under various conditions.Q: When should maintenance or replacement be considered?
A: Routine checks should be carried out as part of regular facility maintenance. If performance diminishes or after one year of use (aligned with warranty duration), inspection and potential replacement are advised to maintain optimal safety standards.Q: How does the laser's safety rating impact its use in the workplace?
A: With an IEC 3R safety rating, the laser is considered safe for use in industrial settings when proper precautions are followed. Direct eye exposure should be avoided, but the risk of harm is minimal for workers following standard safety guidelines.Tell us about your requirement
