DC to DC Converter 42-90V To 12v converter 35A

Product Description

The DC to DC Converter 4290V to 12V DC 35A is a high-capacity step-down power converter designed to convert 42V90V DC input into a stable 12V DC output. With a rated output current of 35A, it is suitable for powering high-load 12V electrical accessories used in industrial vehicles and material-handling equipment.

The converter features a durable aluminium housing, which provides good heat dissipation and mechanical protection. Its IP55 protection rating makes it suitable for demanding industrial environments where protection against dust and water is required.

Product details

FAQs DC/DC Converter 4290V to 12V DC, 35A

1. What is the input voltage range of this DC/DC converter?

The converter is designed to operate with an input voltage range of 42V to 90V DC.

2. What is the output voltage of the converter?

It converts the input voltage to a stable 12V DC output for compatible electrical devices and accessories.

3. What is the rated output current?

The converter has a rated output current capacity of 35A.

4. What is the maximum output power?

At 12V DC and 35A, the maximum rated output power is approximately 420W.

5. What material is used for the converter body?

The converter features a durable aluminium body, which provides mechanical protection and assists with heat dissipation.

6. What is the waterproof rating?

The converter has an IP55 protection rating, providing protection against dust and water jets.

7. What are the wire connections?

• Red Wire: Input Positive (+ve)

• Black Wire: Input Negative (ve)

• Yellow Wire: Output Positive (+ve)

• Blue Wire: Output Negative (ve)

8. What are the dimensions of the converter?

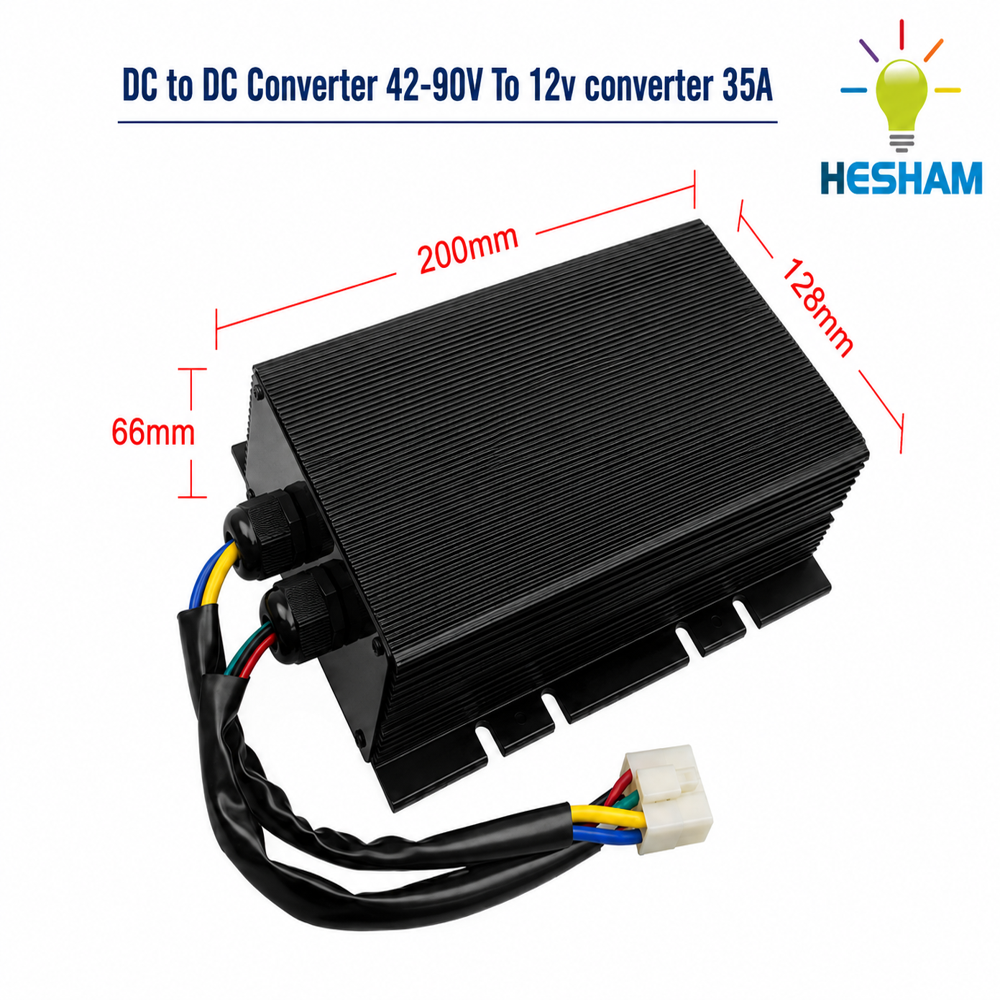

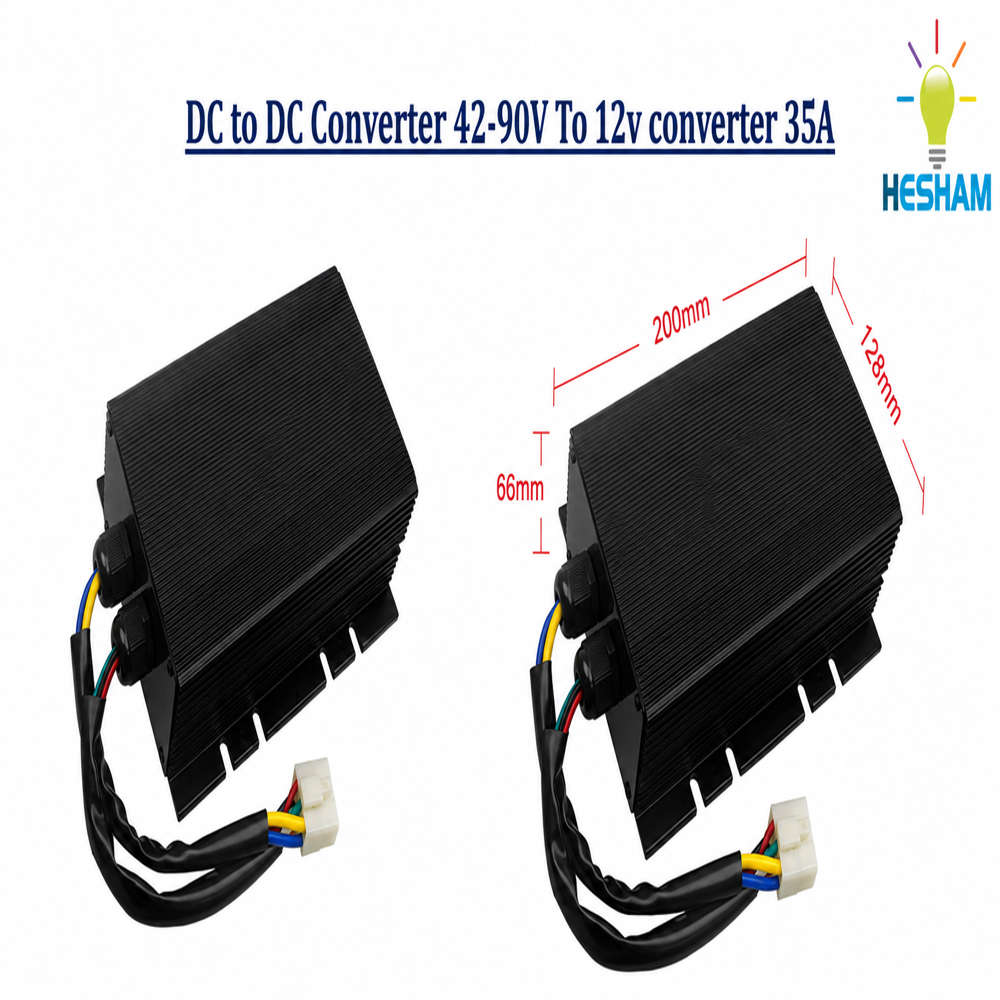

The approximate dimensions shown are 200 128 66 mm.

9. Where can this DC/DC converter be used?

It is suitable for forklifts, Hydra cranes, material-handling equipment, industrial vehicles, and other DC-powered machinery requiring a 12V DC supply.

10. What is the main function of this converter?

Its main function is to step down a 4290V DC power supply to 12V DC, allowing 12V electrical accessories to operate from a higher-voltage DC system.

11. Can it be used for 12V accessories on a forklift?

Yes. It can power compatible 12V cameras, monitors, safety lights, alarms, and other electrical accessories, provided the total load remains within the converter's rated capacity.

12. Is this converter suitable for industrial applications?

Yes. Its wide DC input range, 35A output capacity, aluminium housing, compact construction, and IP55 rating make it suitable for industrial and material-handling applications.
