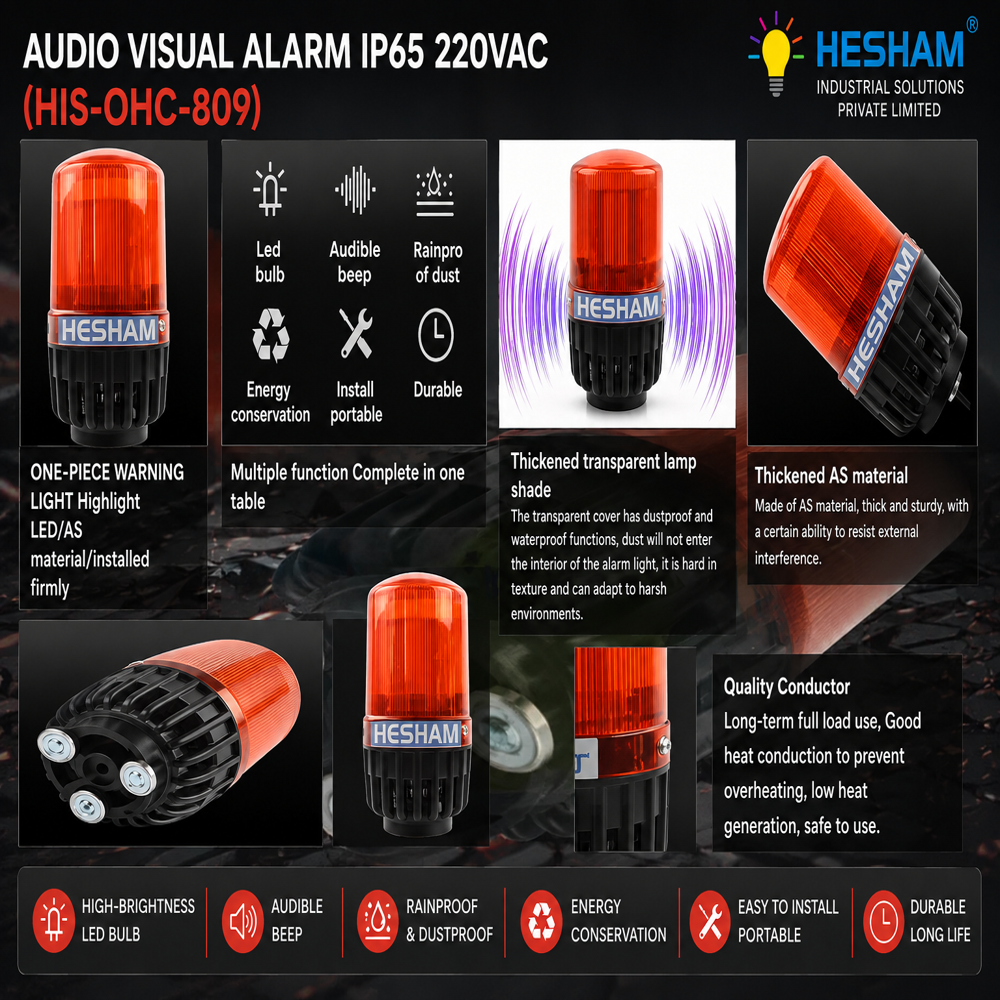

AUDIO VISUAL ALARM IP65 220VAC (HIS-OHC-809)
7000.0 INR/Unit
Product Details:
- Noise Level 108~110dB
- Warranty 1 YR WARRANTY
- Suitable For Industrial use, areas requiring audio-visual indication
- Voltage 220 Volt (v)
- Power Supply 220V AC
- Alarm Light Color Red, Yellow, Green
- Click to view more
X
AUDIO VISUAL ALARM IP65 220VAC (HIS-OHC-809) Price And Quantity
- 1 Unit
- 7000.0 INR/Unit
AUDIO VISUAL ALARM IP65 220VAC (HIS-OHC-809) Product Specifications
- 220V AC
- Red, Yellow, Green
- 220 Volt (v)
- Industrial use, areas requiring audio-visual indication
- 1 YR WARRANTY
- 108~110dB
- 85(D) x 85(W) x 158(H) mm
- 50/60Hz
- Xenon lamp and LED tube
- Base: Nylon + GF30%, Shade: PC
- HIS-OHC-809
- PJ061: Special lampshade
- Manual (no wireless control specified)
- 0.4kg
- High-brightness flashing, loud alarm sound, optional tone, high transmission lamp cover, aging resistance
- Screw fixation, strong magnetic adsorption, flange installation
- PC (polycarbonate), UV and aging resistant
- IP56
- 10W
- 3 x M6 screws for installation
AUDIO VISUAL ALARM IP65 220VAC (HIS-OHC-809) Trade Information
- 10 Days
Product Description
Description
The HIS-OHC-809 Audio Visual Alarm is a compact industrial warning device combining high-brightness flashing light with a loud 108110 dB audible alarm. It features a durable PC lampshade with good light transmission, UV and aging resistance, multiple voltage options, and flexible screw, magnetic, or flange mounting. The product literature also describes dust/water resistance, energy-saving illumination, and suitability for harsh environments.

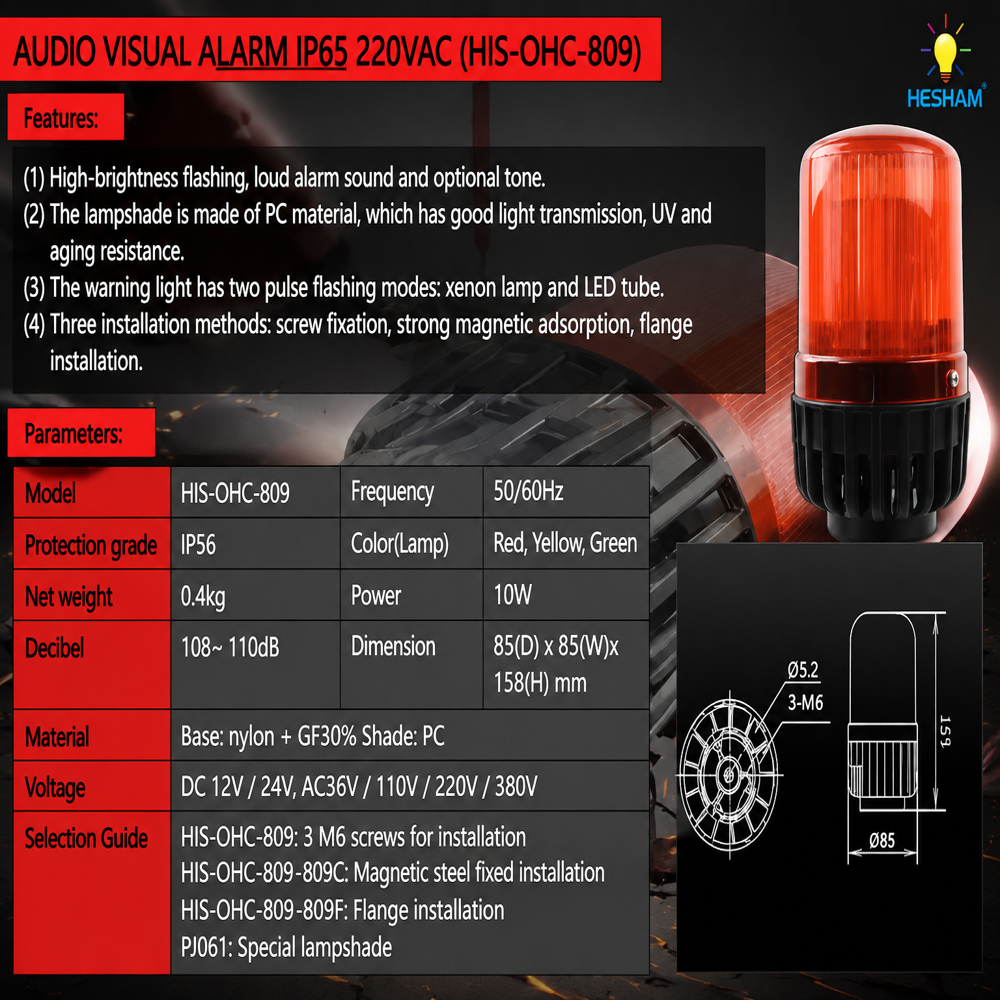

Specifications
| Specification | Details |
|---|---|
| Model | HIS-OHC-809 |
| Protection Grade | IP56 |
| Frequency | 50/60 Hz |
| Power | 10 W |
| Sound Level | 108110 dB |
| Voltage | DC 12V / 24V; AC 36V / 110V / 220V / 380V |
| Lamp Colors | Red, Yellow, Green |
| Flashing Options | Xenon lamp / LED tube |
| Dimensions | 85 85 158 mm |
| Net Weight | 0.4 kg |
| Base Material | Nylon + GF30% |
| Lampshade Material | PC |
| Installation | Screw / Magnetic / Flange |
| Standard Installation | 3 M6 screws |
The above electrical, dimensional, material, and mounting specifications are stated on page 1 of the supplied datasheet.
Note: Although the document title says IP65 220VAC, its specification table lists the protection grade as IP56 and lists several supported voltages, including 220VAC. I have kept the specification exactly as stated in the supplied datasheet rather than resolving that inconsistency independently.
Reliable Visual and Audible Alerts
Designed for maximum visibility and audibility, the HIS-OHC-809 delivers high-intensity flashing lights and a loud alarm tone up to 110dB, providing clear warnings in industrial areas. Its red, yellow, or green alarm options ensure appropriate signaling for different needs in various operational settings.
Durable and Flexible Installation
Constructed from nylon with 30% glass fiber and a polycarbonate shade, the alarm is resistant to UV, impact, and aging. Multiple mounting options using M6 screws, magnetic bases, or flanges accommodate diverse installation requirements, making it suitable for factories, warehouses, or hazardous work sites.
FAQ's of AUDIO VISUAL ALARM IP65 220VAC (HIS-OHC-809):
Q: How is the HIS-OHC-809 Audio Visual Alarm installed?
A: The HIS-OHC-809 can be mounted using three M6 screws, strong magnetic adsorption, or flange installation. This flexibility ensures secure and efficient setup in various industrial locations.Q: What environments are suitable for using the HIS-OHC-809 alarm?
A: This alarm is designed for industrial environments or any areas where clear audio-visual indicators are necessary, especially in settings exposed to dust, moisture, or challenging conditions requiring robust IP56 protection.Q: How does the flashing and alarm system operate?
A: The HIS-OHC-809 provides high-brightness visual alerts through Xenon lamp or LED tube flashing and emits a loud alarm tone rated at 108-110dB. Operation is manually controlled, ensuring alerts can be activated as needed.Q: What materials enhance the durability of this audio visual alarm?
A: The alarm's base is made from nylon reinforced with 30% glass fiber, while the lamp shade is constructed from UV- and aging-resistant polycarbonate. These materials ensure long-lasting performance and protection against harsh environmental effects.Q: What warranty is offered on the HIS-OHC-809?
A: This model comes with a one-year warranty, covering any manufacturing defects or functional issues within the warranty period, ensuring reliable after-sales support.Tell us about your requirement
